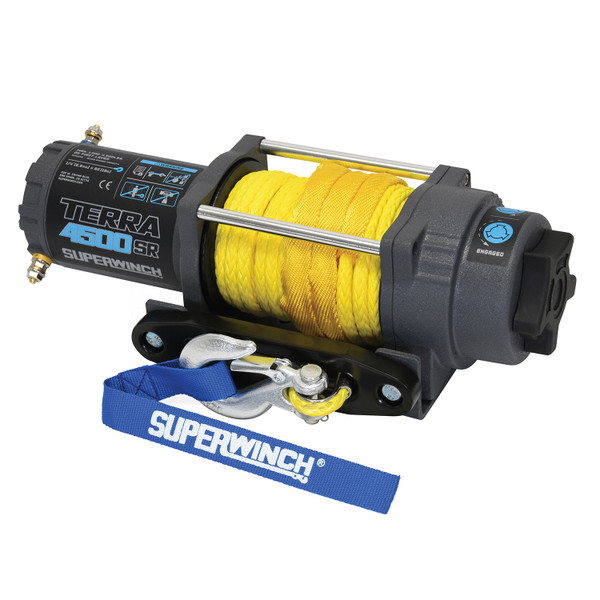

Terra 4500SR Winch 1145270
click to zoom in

Terra 4500SR Winch 1145270

(No reviews yet) Write a Review
Terra 4500SR Winch 1145270

Terra 4500SR Winch 1145270

$539.99

video gallery

Why Buy Leonard?

Description

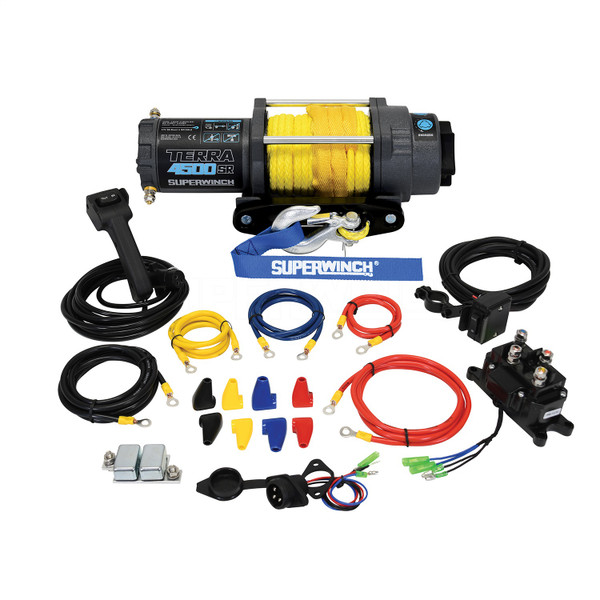

The new generation Terra Series winches from Superwinch are engineered specifically to meet the rugged demands of ATV and UTV enthusiasts. Available 4500 lbs. capacities with a choice of wire or synthetic rope, these powerful winches have been redesigned and improved inside and out. Each winch is loaded with a powerful motor, strong all steel gearing and a steel drum for superior performance and durability. All Terra Series winches are equipped with a remotely mountable control box that houses a sealed solenoid and circuit breaker to ensure reliable operation. Free spool function is simple to manage with an easy to engage ergonomic control knob. Each winch includes a 10' wired remote control and a handlebar mounted rocker switch for dependable control and maximum versatility. The Terra Series winches have an IP67 rating for water and dust protection so they are always ready for action.

  • Rated Line Pull Of 4500 Lbs
  • Heavy-Duty Clevis Pinned Latched Hook
  • Aluminum Hawse Fairlead

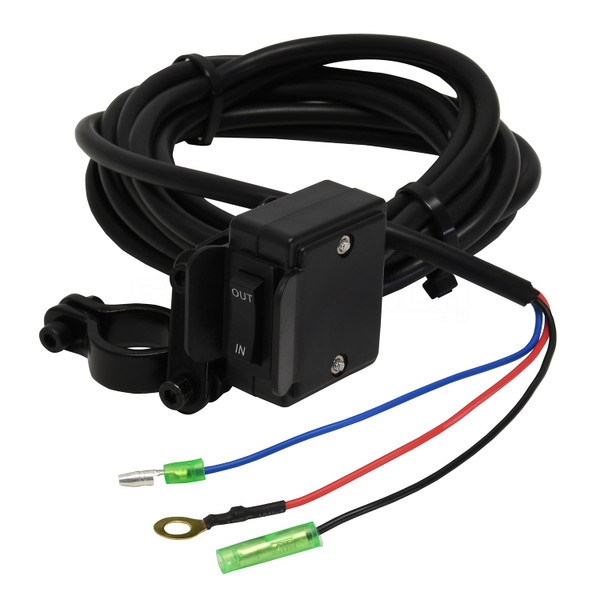

  • 10 Ft. Rugged Remote Control With Handlebar Mounted Rocker Switch
  • Narrow Drum Allows Easier Mounting In Tight Spaces
  • Universal Mounting Plate
  • Mounting Bolt Pattern 3 in. X 6.66 in.
  • 1.8 Hp Permanent Magnetic Motor
  • 3-Stage Planetary Gearing With 198:1 Ratio
  • Sealed Solenoid With Circuit Breaker

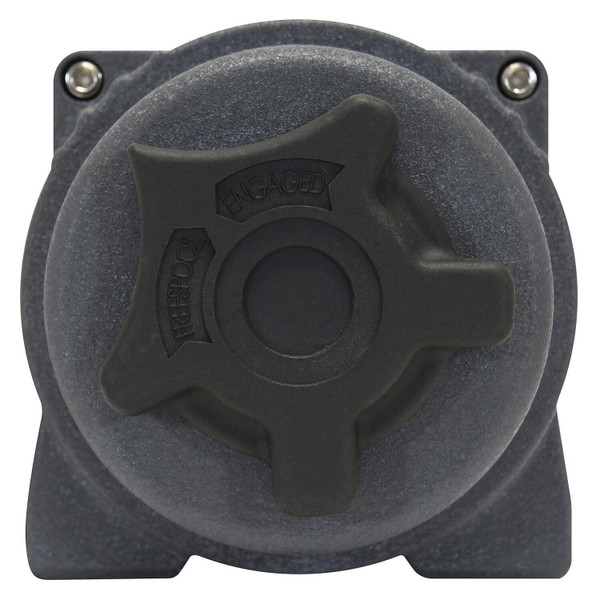

  • Easy To Engage Ergonomic Freespool Control Knob
  • IP67 Protection From Water And Dust
Specifications
SKU:
BCTC-1145270
Marketing Status:
Current
Consumer Features And Benefits:
IP67-rated to keep out water, mud, snow, and dust
Consumer Features And Benefits:
Sealed solenoid with circuit breaker
Consumer Features And Benefits:
Warranty: limited lifetime (mechanical); 3-year limited (electrical)
Consumer Features And Benefits:
Cam-style clutch control knob
Rope Material:
Synthetic
Superwinch Web Title:
Terra 4500SR Winch with Synthetic Rope
Subcategory:
Utility Winches
Category:
Winches and Accessories
Consumer Features And Benefits:
1.8 HP permanent magnetic motor
Hook:
Heavy-Duty, Clevis Pinned Latched
Marketing Status:
New Product
Consumer Features And Benefits:
Wide drum for extra rope capacity
Mounting Bolt Pattern:
3.0in x 4.87in (76mm x 124mm)
Type:
ATV
Series:
Terra Series Winches
Consumer Features And Benefits:
Three-stage planetary gearing (198:1 ratio)
Consumer Features And Benefits:
4,500 lb line pull rating and automatic 100% load-holding brake
Consumer Features And Benefits:
Heavy-duty, clevis-pinned, latched hook
Warranty:
Limited Lifetime Mechanical/3 Year Limited Electrical
Consumer Features And Benefits:
10’ handheld remote with handlebar-mounted rocker switch
Voltage:
12 DC
Rated Single Line Pull (lbs.):
4500
California Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Consumer Marketing Description:
When it comes to ATV/UTV powersports, Terra 4500SR winches from Superwinch are an absolute fortress thanks to the industry’s first truly sealed assembly. Every seal, from the outermost end of the motor to the free-spooling control knob, is IP67 rat
Can Ship By Ground Delivery:
Yes
Freight Class:
60
Finish/color:
Gray Wrinkle
Rated Single Line Pull (lbs):
4500
En Compliant:
No
Consumer Features And Benefits:

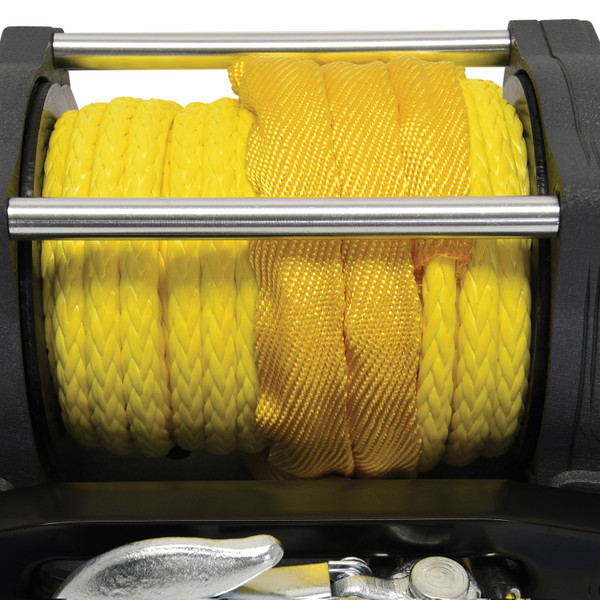

Synthetic rope (1/4” x 50’) with black powder-coated aluminum hawse fairlead
