UT3000 Winch 1331200
click to zoom in

UT3000 Winch 1331200

(No reviews yet) Write a Review
UT3000 Winch 1331200

UT3000 Winch 1331200

$223.62

video gallery

Why Buy Leonard?

Description

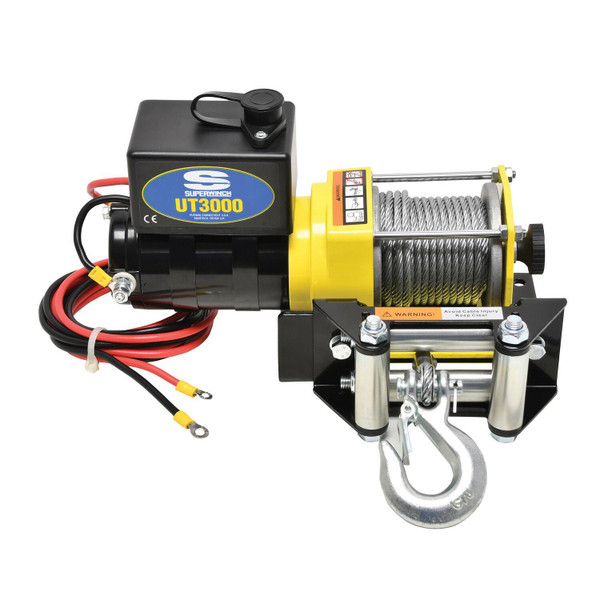

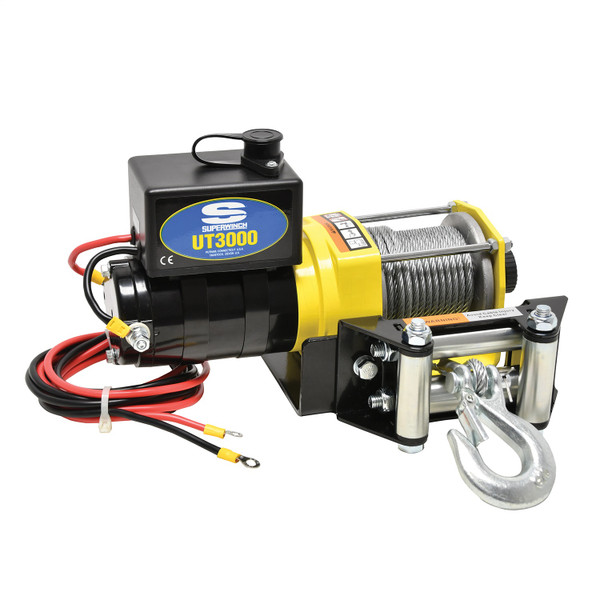

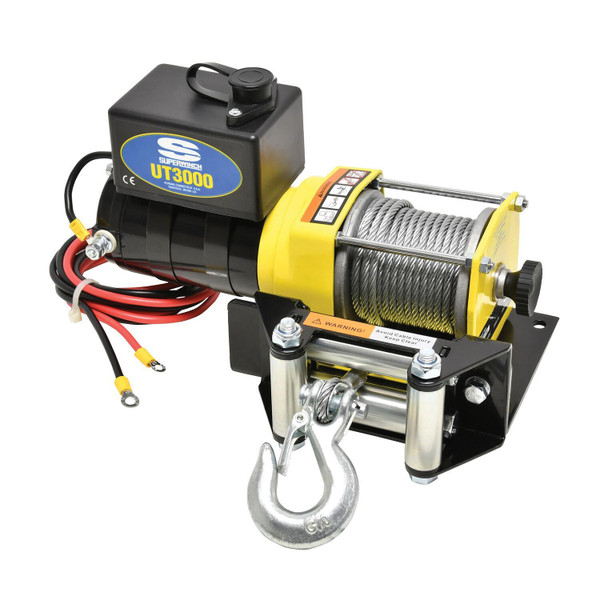

The Superwinch UT3000 Winch provides 3,000 lbs of pulling capacity, freespool control and cable tensioner to keep your cable wrap tight. Controller and roller fairlead on a mount plate makes this winch a great choice for simple jobs around the house or worksite.

  • Rated Line Pull Of 3000 Lbs
  • 1.2 Hp Permanent Magnet Motor Provides Dynamic Braking
  • 1-Stage Planetary Gearing With 153:1 Ratio
  • Circuit Breaker Protected
  • Free-Spooling Pull And Turn Clutch
  • Wire Rope Measures 3/16 In. X 40 Ft.
  • Clevis Pinned Hook
  • Zinc Plated 4-Way Fairlead
  • 12 Ft. Wired Hand-Held Remote
Specifications
SKU:
BGFJ-1331200
Minimum Purchase:
1 unit
Winch Dimension (in):
12.0 x 7.5 x 7.0
Drive Gear:
1-Stage Planetary
Gear System:
1-stage planetary
Mounting Pattern Length:
3
Line Speed:
5 Amps Motor Draw/8.5 FPM (2.58 MPM)
Category:
Winches and Accessories
Remote Type:
Wired
Remote Included:
Yes
Horsepower:
1.2
Motor Type:
12V DC
Line Length:
40
Rope Material:
Steel Wire
California Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Free Spooling:
Yes

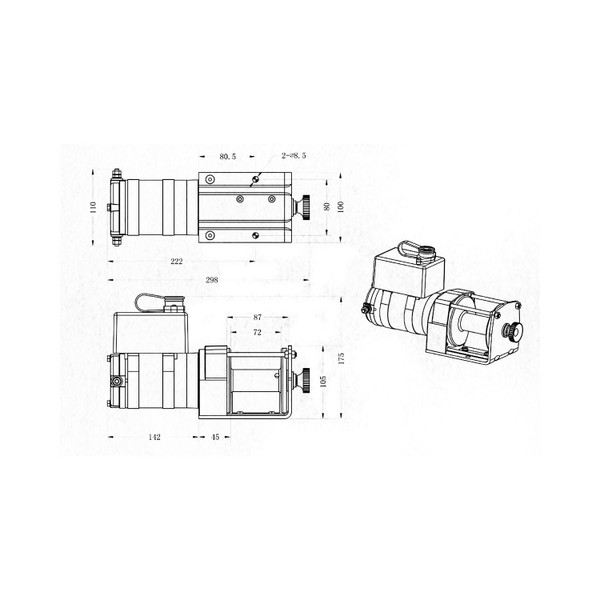

Dimensions:
12.0in L x 7.5in D x 7.0in H (304.8mm L x 190.5mm D x 177.8mm H)
Remote:
12ft Rubber Hand-held
Gear Reduction Ratio:
153:1
Rated Single Line Pull (lbs.):
3000
Rating:
3000
Solenoid:
Circuit Breaker Protected
Winch Type:
Electric
En Compliant:
No
Volts:
12
Drum Length (in.):
2.83
Marketing Status:
Current
Mounting Hardware Included:
Yes
Line Included:
Yes
Drum Diameter (in.):
1.25
Line Diameter:
3
Type:
Automotive
Winch Color:
Black
Fairlead Type:
Roller
Gear Ratio:
153:1
Mounting Bolt Pattern:
2 Hole, 3.15in (80mm) on Center
Mounting Hole Quantity:
2 Holes
Freight Class:
60
Finish/color:
Black
Superwinch Web Title:
UT3000 Winch with Steel Wire Rope
Subcategory:
Utility Winches
Rope Length:
3/16 in x 40 ft
Rated Single Line Pull (lbs):
3000
Brake System:
Dynamic
Clutch:
Free-Spooling, Pull and Turn
Hook:
Removable Clevis Pinned
Line Type:
Steel Cable
Brake:
Yes
Voltage:
12 DC
Series:
UT Series Winches
Can Ship By Ground Delivery:
Yes
allowed_types:
accessories
