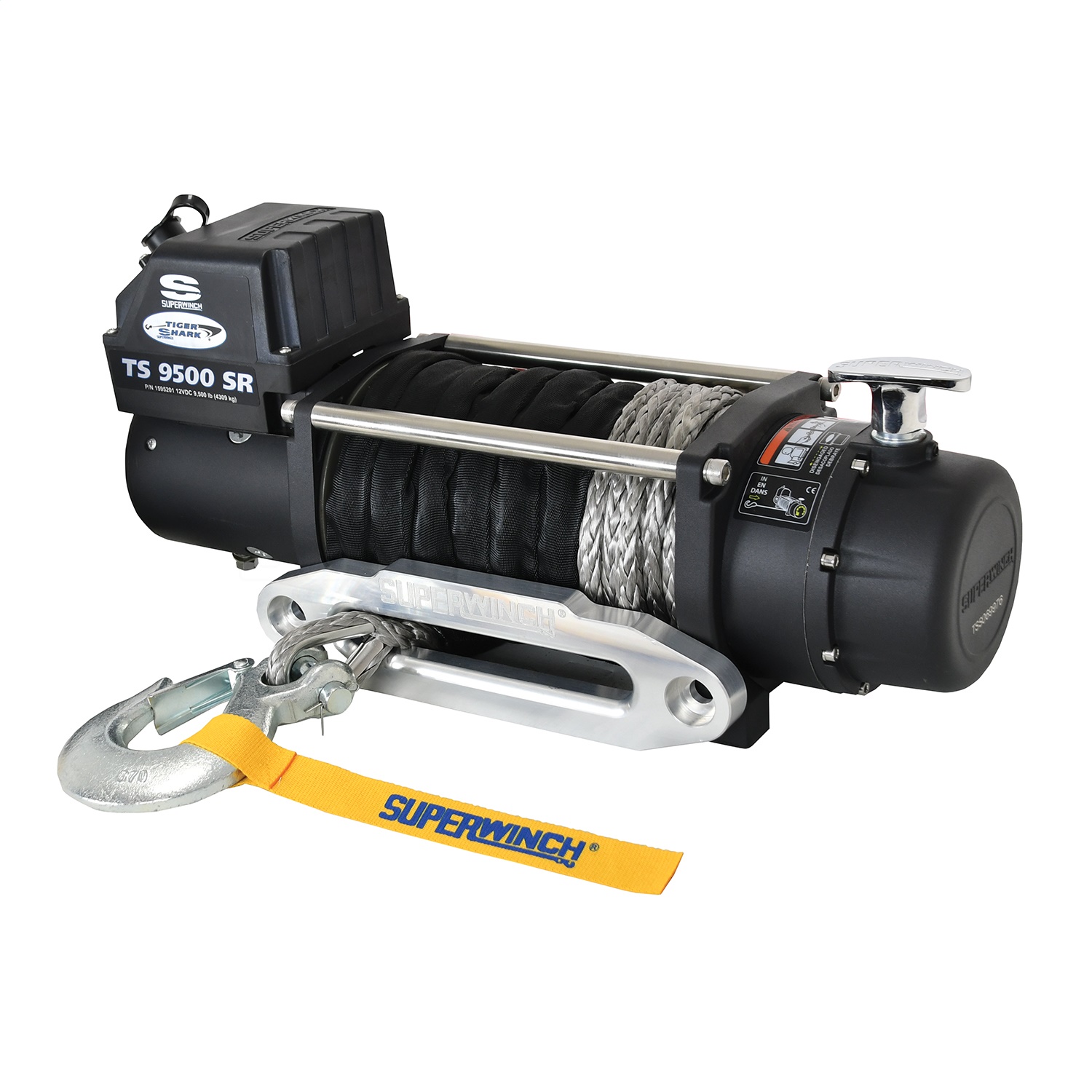

Tiger Shark 9500 Winch Synthetic 1595201
click to zoom in

Tiger Shark 9500 Winch Synthetic 1595201

(No reviews yet) Write a Review
Tiger Shark 9500 Winch Synthetic 1595201

Tiger Shark 9500 Winch Synthetic 1595201

$875.99

video gallery

Why Buy Leonard?

Description

One of Superwinchs most popular winches, the Tiger Shark 9500 winch synthetic models come standard with an automatic load holding brake, better drums (thicker, fabricated steel), and stainless steel hardware and tiebars. Dollar for dollar, theres no better winch than the Superwinch Tiger Shark.

  • Rated Line Pull Of 9500 Lbs
  • Heavy-Duty Clevis Pinned Latched Hook
  • Aluminum Hawse Fairlead
  • Rugged Handheld Remote Control
  • Stainless Steel Tiebars
  • 5.2 Hp Motor
  • 3-Stage Planetary Gearing With 218:1 Ratio
  • Weather Sealed Solenoid
  • Ergonomic Pull And Turn Freespool
  • Synthetic Rope Measures 3/8 In. X 80 ft.
  • Automatic Load Holding Brake Design
Specifications
SKU:
BGFJ-1595201
Minimum Purchase:
1 unit
Mounting Pattern Length:
10
Drum Diameter (in.):
2.5
Drive Gear:
3-Stage Planetary
Gear System:
3-stage planetary
Drum Length (in.):
9.0
Finish/color:
Black
Rope Material:
Synthetic
Series:
Tiger Shark Winches
Brake:
Yes
Mounting Hole Quantity:
4 Holes
Rated Single Line Pull (lbs.):
9500
Rating:
9500
Type:
Automotive
Winch Type:
Electric
Clutch:
Pull and Turn, Ergo
Line Type:
Synthetic Rope
Solenoid:
Weather Sealed Solenoid and Circuit Breaker Protected
Can Ship By Ground Delivery:
Yes
Volts:
12
Winch Dimension (in):
20.8 x 6.3 x 9.2
Gear Ratio:
218:1
Horsepower:
5.2
Line Length:
80
Superwinch Web Title:
Tiger Shark 9500SR Winch 12V with Synthetic Rope
Free Spooling:
Yes
Gear Reduction Ratio:
218:1
Marketing Status:
Current
Brake System:
Mechanical, Automatic Load Holding
Mounting Hardware Included:
Yes
Line Included:
Yes
Mounting Bolt Pattern:
10in x 4.5in (254mm x 114.3mm) & 10in x 6.5in (254mm x 165.1mm)
Rope Length:
3/8 in x 80 ft

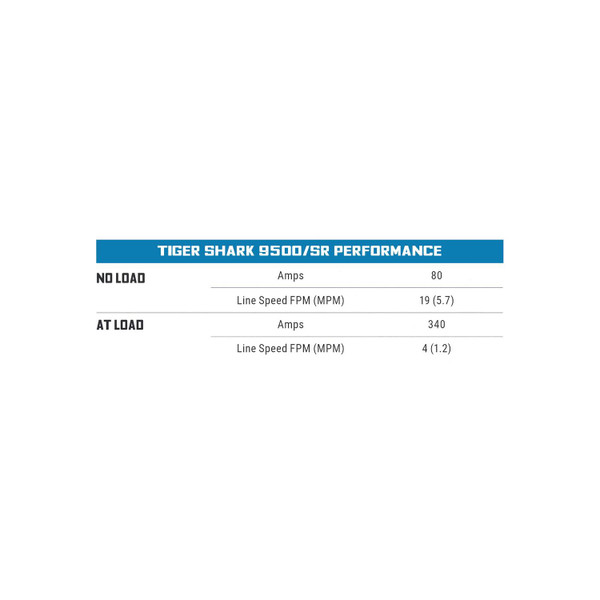

Line Speed:
80 Amps Motor Draw/19 FPM (5.7 MPM)
Freight Class:
60
Rated Single Line Pull (lbs):
9500
Winch Color:
Black
Fairlead Type:
Hawse
Subcategory:
Truck and SUV Winches
California Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Category:
Winches and Accessories
En Compliant:
No
Remote:
12ft Rubber Sealed Hand-held
Motor Type:
12V DC
Mounting Pattern Width:
4
Remote Included:
Yes
Voltage:
12 DC

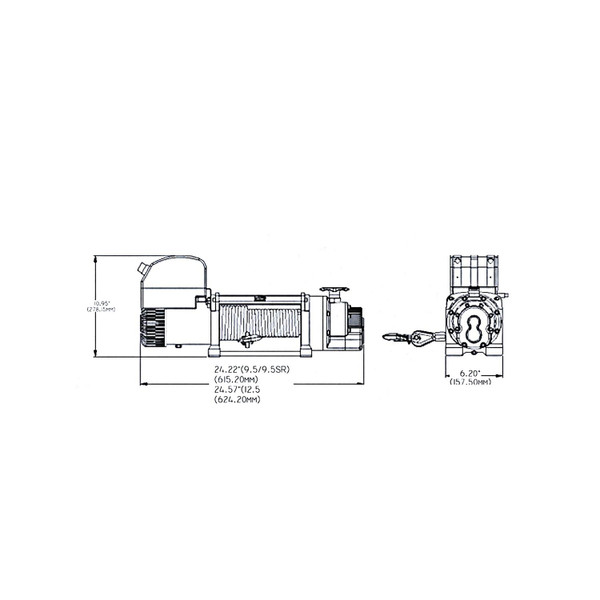

Dimensions:
20.8in L x 6.3in W x 9.2in H (529mm L x 160mm W x 234.5mm H)
Line Diameter:
3
Hook:
Heavy-Duty, Clevis Pinned Latched
Warranty:
Limited Lifetime Mechanical/7 Year Limited Electrical
Remote Type:
Wired
