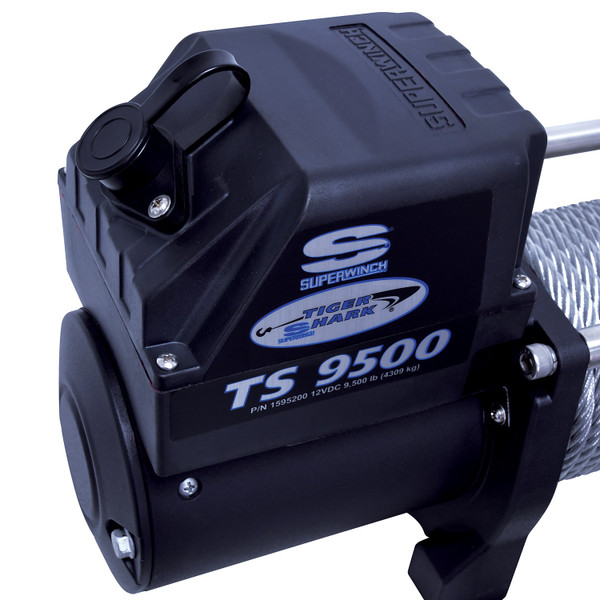

Tiger Shark 9500 Winch 1595200
click to zoom in

Tiger Shark 9500 Winch 1595200

(No reviews yet) Write a Review
Tiger Shark 9500 Winch 1595200

Tiger Shark 9500 Winch 1595200

$663.99

video gallery

Why Buy Leonard?

Description

One of Superwinchs most popular winches, the Tiger Shark 9500 is the benchmark for performance winching while not breaking the bank. From powerful motors, to strong gears, to long-life stainless steel parts, the Tiger Shark 9500 stands out from the competition. It is easy to see why the Tiger Shark remains one of Superwinchs most popular winches year after year.

  • Rated Line Pull Of 9500 Lbs
  • Rugged Handheld Remote Control
  • Stainless Steel Tiebars
  • 5.2 Hp Motor
  • 3-Stage Planetary Gearing With 218:1 Ratio
  • Weather Sealed Solenoid
  • Ergonomic Pull And Turn Freespool
  • Wire Rope Measures 21/64 In. X 95 ft.
  • Heavy-Duty Clevis Pinned Latched Hook
  • Stainless Steel 4-Way Roller Fairlead
Specifications
SKU:
BGFJ-1595200
Minimum Purchase:
1 unit
Mounting Pattern Length:
10
Drum Diameter (in.):
2.5
Drive Gear:
3-Stage Planetary
Rated Single Line Pull (lbs.):
9500
Marketing Status:
Current
Clutch:
Pull and Turn, Ergo
Subcategory:
Truck and SUV Winches
Solenoid:
Weather Sealed Solenoid and Circuit Breaker Protected
Freight Class:
60
Drum Length (in.):
9.0
Finish/color:
Black
Winch Type:
Electric
Series:
Tiger Shark Winches
Brake:
Yes
Can Ship By Ground Delivery:
Yes
Motor Type:
12V DC
Line Diameter:
21
Mounting Pattern Width:
4
Mounting Hardware Included:
Yes
Remote Included:
Yes
Voltage:
12 DC
Line Speed:
80 Amps Motor Draw/19 FPM (5.7 MPM)
Rated Single Line Pull (lbs):
9500
Hook:
Heavy-Duty, Clevis Pinned Latched
Category:
Winches and Accessories
Remote Type:
Wired
Mounting Bolt Pattern:
10in x 4.5in (254mm x 114.3mm) & 10in x 6.5in (254mm x 165.1mm)
Rope Length:
11/32 in x 95 ft
Dimensions:
20.8in L x 6.3in W x 9.2in H (529mm L x 160mm W x 234.5mm H)
Rating:
9500
Type:
Automotive
Winch Color:
Black
Fairlead Type:
Roller
Line Type:
Steel Cable
California Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Free Spooling:
Yes
Gear Reduction Ratio:
218:1
Mounting Hole Quantity:
4 Holes
Brake System:
Mechanical, Automatic Load Holding
Volts:
12
Winch Dimension (in):
20.8 x 6.3 x 9.2
Gear Ratio:
218:1
Horsepower:
5.2
Line Length:
95
Warranty:
Limited Lifetime Mechanical/7 Year Limited Electrical
Rope Material:
Steel Wire
Superwinch Web Title:
Tiger Shark 9500 Winch 12V with Steel Wire Rope
Line Included:
Yes
Remote:
12ft Rubber Sealed Hand-held
Gear System:
3-stage planetary
En Compliant:
No
