12,000lb Winch 12 VDC, 3/8 in x 85 ft. wire rope, ergo handheld remote control 1712200
click to zoom in

12,000lb Winch 12 VDC, 3/8 in x 85 ft. wire rope, ergo handheld remote control 1712200

(No reviews yet) Write a Review

SELECT YOUR VEHICLE

12,000lb Winch 12 VDC, 3/8 in x 85 ft. wire rope, ergo handheld remote control 1712200

12,000lb Winch 12 VDC, 3/8 in x 85 ft. wire rope, ergo handheld remote control 1712200

$673.99

video gallery

Description

The SX 12000 is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8 in. diameter wire rope and a 12' lighted wired remote that comes standard. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 12,000 lbs. of raw pulling power, the new SX 12000 wire rope model has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all.

  • Rated Line Pull Of 12000 Lbs
  • 3-Stage Planetary Gearing With 231:1 Ratio
  • Patented Drum Light/ IP68
  • Wire Rope Measures 3/8 In. X 85 Ft.
  • Heavy Duty Clevis Winch Hook
  • Stainless Steel 4-Way Roller Fairlead
  • 100% Full Load Holding Automatic Mechanical Brake
  • 6.0 Hp Sealed Motor

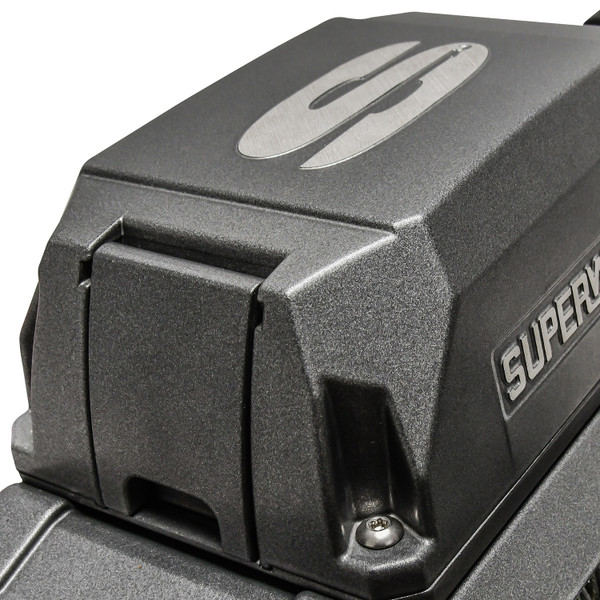

  • Relocatable Die-Cast Aluminum Control Box
  • 12 Ft Handheld Wired Remote Features Flashlight
  • With Rechargeable Lithium Ion Battery
  • Pull-And Turn Clutch Handle
Specifications
SKU:
BGFJ-1712200
Minimum Purchase:
1 unit
Mounting Hole Quantity:
4 Holes
Line Length:
85
Rated Single Line Pull (lbs):
12000
En Compliant:
No
Line Type:
Steel Cable
Voltage:
12 DC
Gear Reduction Ratio:
218:1
Hook:
Heavy-Duty, Clevis Pinned Latched
Superwinch Web Title:
SX12 Winch 12V 12000 lbs with Steel Wire Rope & Wired Remote
Remote Type:
Wired
Mounting Pattern Length:
10
Line Diameter:
3
Drive Gear:
3-Stage Planetary
Mounting Pattern Width:
4
Finish/color:
Graphite
Warranty:
Limited Lifetime Mechanical/7 Year Limited Electrical
Subcategory:
Truck and SUV Winches
Mounting Bolt Pattern:
10in x 4.5in (254mm x 114.3mm)
Rated Single Line Pull (lbs.):
12000
Marketing Status:
Current
Mounting Hardware Included:
Yes
Brake:
Yes
Remote Included:
Yes
Voltage:
12V DC
Winch Type:
Electric
Series:
SX Series Winches
Can Ship By Ground Delivery:
Yes
Dimensions:
22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
Fairlead Type:
Roller
California Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Category:
Winches and Accessories
Volts:
12
Rating:
12000
Freight Class:
60
Line Speed:
68 Amps Motor Draw/23.4 FPM (7.13 MPM)
Rope Material:
Steel Wire
Line Included:
Yes
Free Spooling:
Yes
