6-inch Suspension Lift Kit 596.20
click to zoom in

6-inch Suspension Lift Kit 596.20

(No reviews yet) Write a Review
6-inch Suspension Lift Kit 596.20

6-inch Suspension Lift Kit 596.20

$1,019.95

video gallery

Why Buy Leonard?

Description

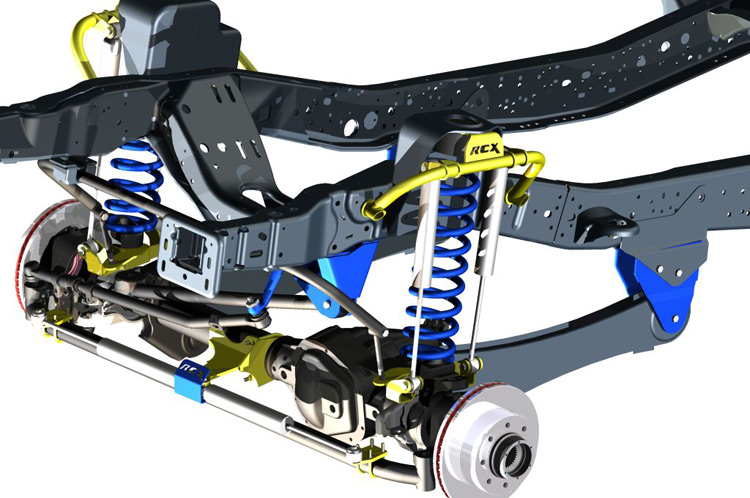

This suspension features luxury ride coil springs matching OE coils rates that are specifically designed for gas or diesel motors. A heavy duty track bar relocation bracket properly centers the axle and matches the steering angles created by the supplied drop pitman arm while the radius arm drop brackets maintain the Super Dutys O.E. caster angles. A steering stabilizer relocation bracket maintains proper steering control but a RC problem solver single unit is recommended with larger tires and a RC dual stabilizer is required when running 37in tires.

  • Easy Bolt-On Installation
  • Increased Ground Clearance
  • Levels The Front w/The Rear Of The Vehicle
  • Radius Arm Drop Brackets Allow For Properly Set Caster
  • Proper Caster Is Crucial
  • To Maintaining Factory Handling And Drivability
  • Incl. Application Valved N3 Series Shock Absorbers
  • Offer The Best In Balanced Performance For On And Off-road Use
Specifications
SKU:
DHTP-596.20
UPC:
00843030129231
Minimum Purchase:
1 unit
Rear Kit Components:
3in Lift Blocks, Add-a-Leafs, Carrier bearing drop bracket, U-Bolts, Hardware
Category:
Suspension
Tire, Wheel, And Offset Info:
37x13.50R17:17x9:8x170:-12:-; 37x13.50R17:17x9:8x170:+0:-; 37x13.50R17:17x9:8x170:+1:-; 37x13.50R18:18x9:8x170:-12:-; 37x13.50R18:18x9:8x170:+0:-; 37x13.50R18:18x9:8x170:+1:-; 37x13.50R20:20x9:8x170:-12:-; 37x13.50R20:20x9:8x170:+0:-; 37x13.50R20:20x
Lift/drop Height:
6 in.
Rear Components:
3in lift blocks, Add-a-leafs, Carrier bearing drop bracket, U-bolts, Hardware
Front Components:
Lifted coil springs, Radius arm drop brackets, Sway-bar link extensions, Track bar drop bracket, Stabilizer relocation brackets, Pitman arm, Brake line brackets, Bumpstop spacers, Hardware
Install Time:
6-8 hours
Front Kit Componenets:
Lifted coil springs, Radius arm drop brackets, Sway-bar link extensions, Track bar drop bracket, Stabilizer relocation brackets, Pitman arm, Brake line brackets, Bumpstop spacers, Hardware
Title:

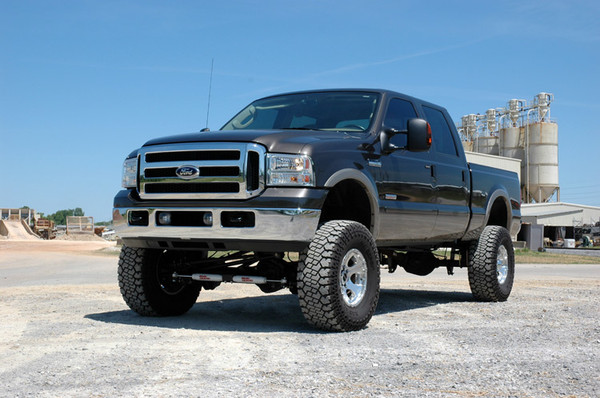

6 Inch Lift Kit - Gas - Ford F-250 F-350 Super Duty 4WD (2005-2007)
Subcategory:
Lift Kits
California Proposition 65:
No
Series:
Suspension Lift Kits
allowed_types:
accessories
