6-inch Non-Torsion Drop Suspension Lift Kit 27220A
click to zoom in

6-inch Non-Torsion Drop Suspension Lift Kit 27220A

(No reviews yet) Write a Review

SELECT YOUR VEHICLE

6-inch Non-Torsion Drop Suspension Lift Kit 27220A

6-inch Non-Torsion Drop Suspension Lift Kit 27220A

$1,149.95

6-inch Non-Torsion Drop Suspension Lift Kit 27220A

$1,149.95
✕

video gallery

Description

Weve raised the bar on our 6 in. NTD suspension for 99 - 06 Chevy/GMC 1500 pickups! Gain greater clearance, better handling, and the cleanest looking 6- in. lift available! This kit features set of lifted front knuckles and 6.25in rear fabricated, anti-wrap blocks allow your 1500 to run up to 35in tires. while a full set of high clearance drop crossmembers, differential drop brackets and non torsion bar drop brackets keep everything tucked, hidden, and at optimum angles.  Rough Countrys 6 in. NTD Suspension Kit features (4) Premium N3 Nitrogen-charged shocks, giving your truck incredible ride-quality both on and off-road. Also included are a set of front CV spacers, sway-bar links, and a protective skid plate to give you everything you need to get rolling in one of our best kits, now at our best price ever! This all-inclusive kit comes with everything you need, and best of all this kit features Rough Countrys Lifetime Replacement Warranty.

  • Maintains Factory Ride Quality
  • Axles Maintain Factory Position And Angle
  • No Drivetrain Or Exhaust Modifications Req.
  • Designed To Reuse Factory Compression Travel Stop
  • Specially Designed Anti-Axle Wrap Rear Blocks
  • Maintain Stock Ride Quality
  • While Eliminating Common Lift Block Problem
  • Will Work w/Auto Trac
  • Unmatched Ground Clearance
  • Torsion Bars Stay In Factory Location
  • Newly Redesigned
  • Easier Installation
Specifications
SKU:
DHTP-27220A
UPC:
00843030124199
Minimum Purchase:
1 unit
Series:
Suspension Lift Kits
Install Time:
8 - 10 hours
Subcategory:
Lift Kits
California Proposition 65:
No
Category:
Suspension
Rear Kit Components:
6.25in Fabricated Lift Blocks, U-Bolts, Hardware
Tire, Wheel, And Offset Info:
Trimming Required; 33x12.50R20:20x10:6x5.5:-25; 305 55R20:20x10:6x5.5:-25; 295 65R20:20x10:6x5.5:-25:Minor Trimming; 295 60R20:20x10:6x5.5:-25; 285 60R20:20x10:6x5.5:-25:Minor Trimming; 275 65R20:20x10:6x5.5:-25; 35x12.50R20:20x10:6x5.5:-24:Trimming
Lift/drop Height:
6 in.
Title:

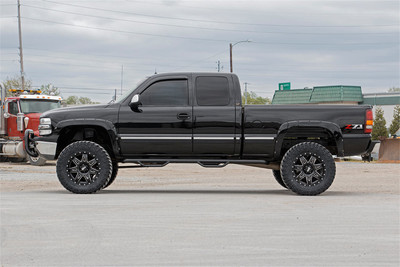

6 Inch Lift Kit - Chevy Silverado & GMC Sierra 1500 4WD (1999-2006 & Classic)
Front Components:
Lifted knuckles, Front crossmember, Rear crossmember, Non-torsion bar drop brackets, Differential drop brackets, Sway-bar links, CV spacers, Skid plate, Hardware
Front Kit Components:
Lifted knuckles, Front crossmember, Rear crossmember, Non-torsion bar drop brackets, Differential drop brackets, Sway-bar links, CV spacers, Skid plate, Hardware
Tire & Wheel Size Combinations:
315/55 R20 - 20x9, Backspacing/Offset: 5in/0mm (If using wheels with -12mm Offset or 4.5-inch Backspacing, some minor inner fender trimming will be required)
Rear Components:
6.25in fabricated lift blocks, U-bolts, Hardware
Tire, Wheel, And Offset Info:
315 75R16:16x8:6x5.5:-6; 305 70R17:17x8.5:6x5.5:-12; 285 75R17:17x8.5:6x5.5:-12; 35x12.50R17:17x8.5:6x5.5:+0; 285 75R17:17x8.5:6x5.5:+0; 35x12.50R17:17x8.5:6x5.5:+1; 35x12.50R17:17x9:6x5.5:-12; 33x12.50R17:17x9:6x5.5:-12; 285 75R17:17x9:6x5.5:-12; 35
Front Kit Componenets:
Lifted knuckles, Front crossmember, Rear crossmember, Non-torsion bar drop brackets, Differential drop brackets, Sway-bar links, CV spacers, Skid plate, Hardware
allowed_types:
accessories
Features
!
