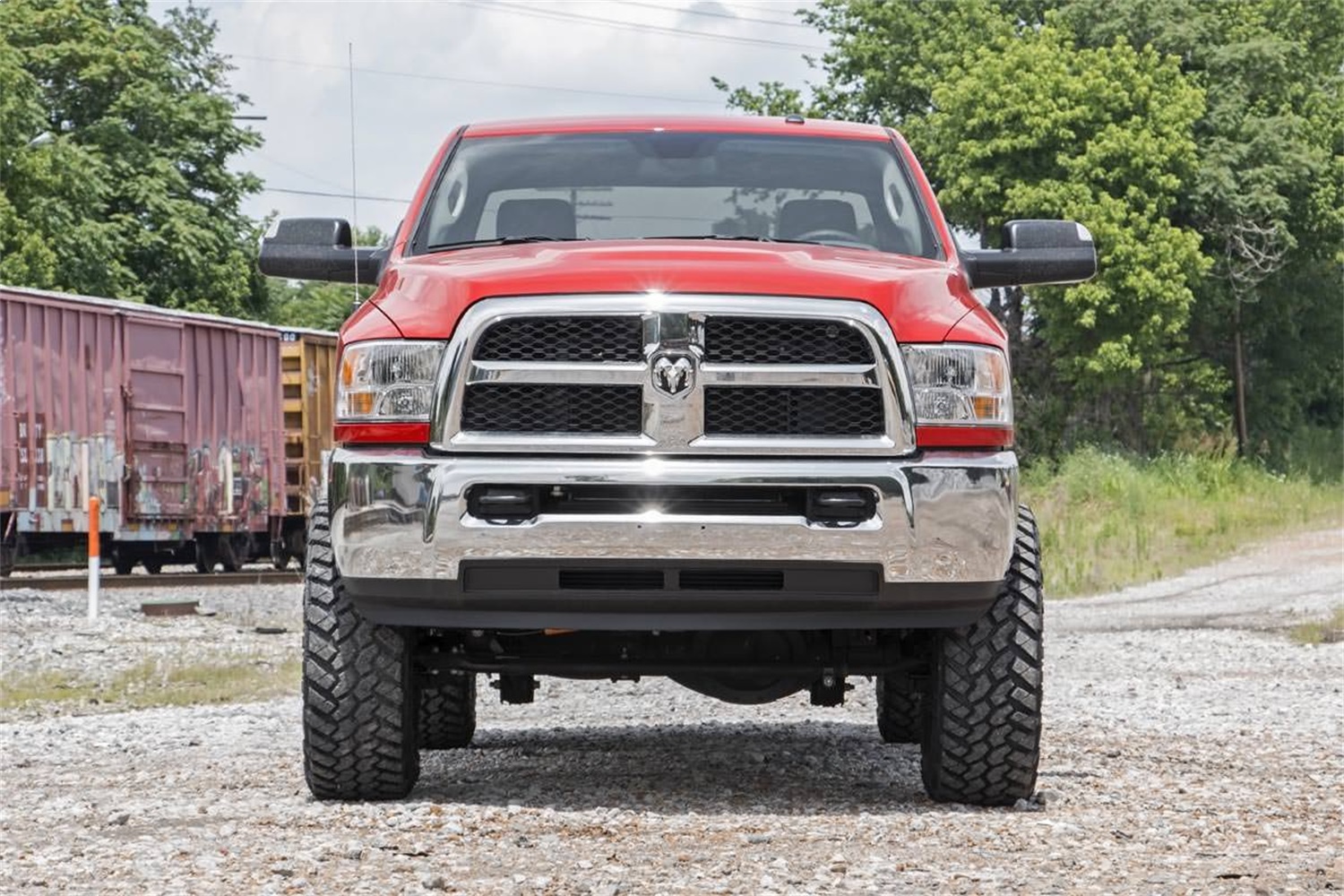

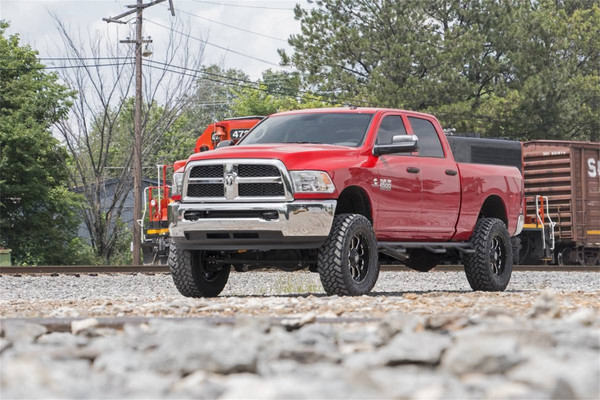

5-inch Radius Arm Drop Coil Spring Suspension Lift Kit (Diesel Engine Models) 36520

(No reviews yet) Write a Review
5-inch Radius Arm Drop Coil Spring Suspension Lift Kit (Diesel Engine Models) 36520

5-inch Radius Arm Drop Coil Spring Suspension Lift Kit (Diesel Engine Models) 36520

$1,119.95

Why Buy Leonard?

Compliment your RAM 2500s aggressive, good looks with Rough Countrys 5- in. Lift Kit. New model RAM Trucks come with a wealth of impressive features right from the factory. Rough Countrys 5- in. kit was engineered to retain these impressive factory specs while bumping up performance and durability where its needed most. The result is a lifted beast with a mean profile and lush ride-quality thatll make other RAM owners wonder where you got yours from!Rough Countrys 5- in. Lift Kit is designed for Dodge RAMs equipped with either factory rear coils or factory rear air ride suspension. On Air Ride models, this kit uses a rear air bag spacer that works with the factory air bag to provide rear lift. This kit also features a Rear Sensor Arm Relocation Bracket that can modify how the sensor link speaks to the computer to determine what the ride height is. This allows you to adjust the amount of rear height up to 1- in. higher than the front by way of multiple mounting points spaced by 1/4- in.. Pick the mounting point you want for the rear ride height you prefer.When changing a vehicles suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Countrys 5- in. Suspension kit features a set of Radius Arm Drop brackets allowing you to retain the beefy factory arms while keeping everything at optimum angles. This kit also features a set of front, lifted coil springs, anti-wrap rear blocks and N3 Shocks for a fantastic blend of smooth highway ride and awesome off-road performance.

  • Increased Ground Clearance
  • Track Bar Bracket Keeps The Front Axle Properly Centered
  • Fits Both Rear Coil Spring And Rear Air Ride Suspension Models
  • Rear Ride Height Arm Brackets Let You Adjust The Rear Ride Height
  • Up To 1 in. Higher Than The Front - Air Ride Models Only
  • Incl. Application Valved N3 Series Shock Absorbers
  • Offer The Best In Balanced Performance For On And Off-road Use
SKU:
DHTP-36520
UPC:
00843030125158
Minimum Purchase:
1 unit
Rear Components:
Rear lift spacers, Track bar bracket, Sway-bar links, Bump stop brackets, Ride height arms, Hardware
Title:
5 Inch Lift Kit - FR Diesel Coil - Radius Arm Drop - Ram 2500 (14-18)
Tire, Wheel, And Offset Info:
37x12.50R17:17x9:8x6.5 8x165.1:+0:-; 37x12.50R18:18x9:8x6.5 8x165.1:+0:-; 37x12.50R20:20x9:8x6.5 8x165.1:+0:-; 37x12.50R20:20x9:8x6.5 8x165.1:+1:Trimming Required
Install Time:
6-8 hours

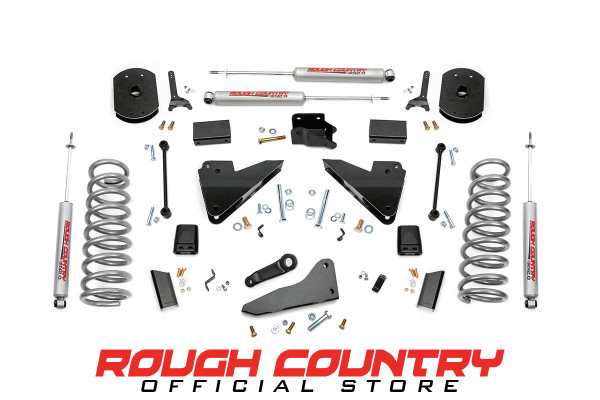

Front Kit Componenets:
Coil springs, Radius arm drop brackets, Track bar bracket, Sway-bar brackets, Pitman arm, Hardware
Category:
Suspension
Front Components:
Coil springs, Radius arm drop brackets, Track bar bracket, Sway-bar brackets, Pitman arm, Hardware
California Proposition 65:
No
Lift/drop Height:
5 in.
Subcategory:
Lift Kits
Front Kit Components:
Coil springs, Radius arm drop brackets, Track bar bracket, Sway-bar brackets, Pitman arm, Hardware
Rear Kit Components:
Rear lift Spacers, Track bar bracket, Sway-bar links, Bump stop brackets, Ride height arms, Hardware
Series:
Suspension Lift Kits
