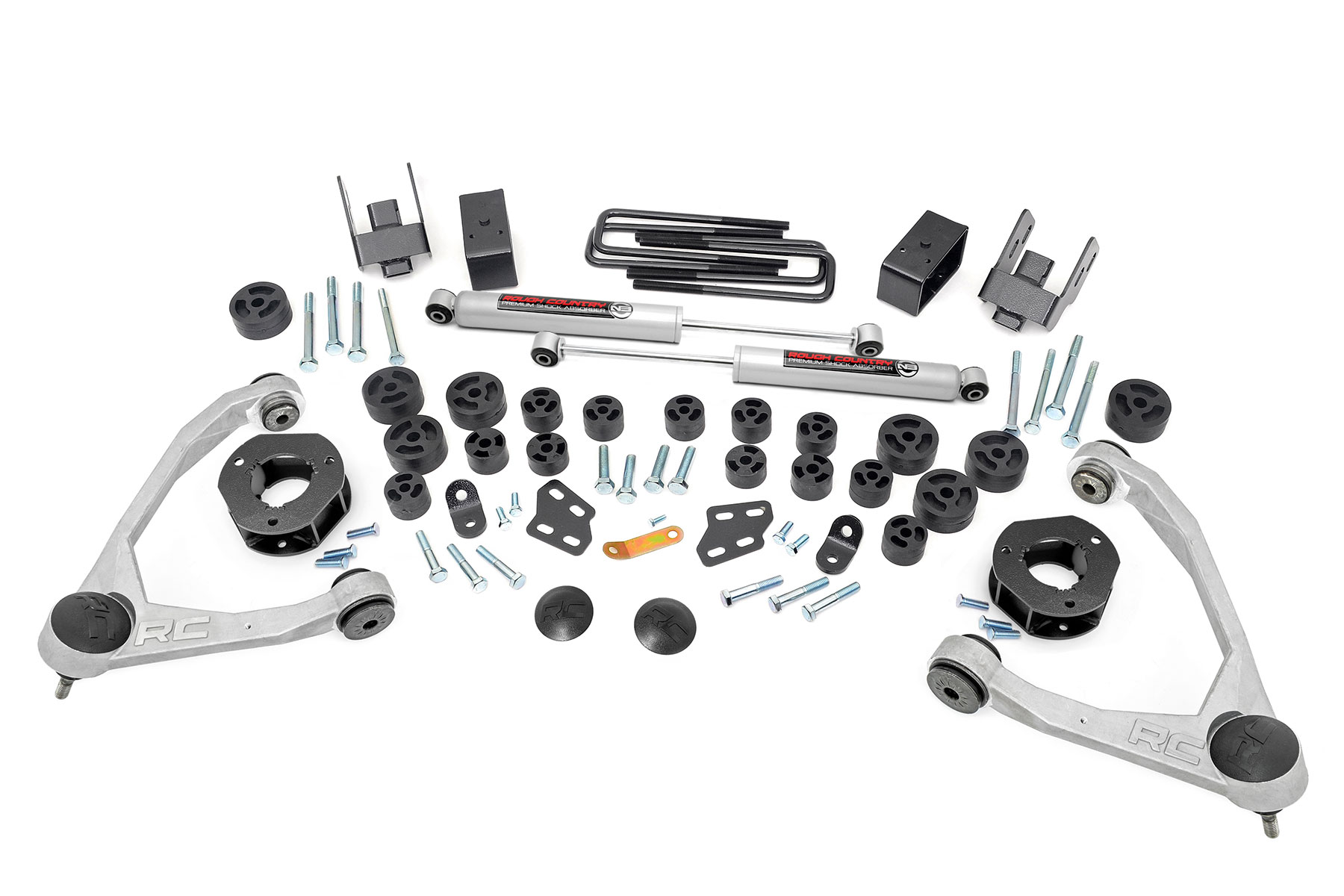

4.75-inch Suspension & Body Lift Combo Kit 254.20

(No reviews yet) Write a Review
4.75-inch Suspension & Body Lift Combo Kit 254.20

4.75-inch Suspension & Body Lift Combo Kit 254.20

$599.95

Why Buy Leonard?

This 4.75 in. combo kit features our Nitrogen charged N3 Shocks offer the best in balanced performance for on and off-road use, featuring a 10-stage velocity sensitive valving custom tuned for this specific application. That means these shocks are specifically valved for use with this specific vehicle and lift combo, giving you unparalleled performance for any driving situation.This kit also features upgraded POM ball joints that offer a greater range of motion for more wheel articulation than standard or OE replacements and feature a Polyoxymethylene ball race with an extremely low coefficient of friction for longer life, and a larger ball diameter to improve range of motion with a maintenance free design. A sealed boot design with grease-relief valve keeps contaminants out while providing a sealed, serviceable environment.Also included in this kit are a set of fabricated rear blocks. Fabricated blocks are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment.

  • Easy Bolt-On Installation
  • Maintains Factory Ride Quality
  • Increased Ground Clearance
  • Able To Be Returned To Stock
  • Levels The Front w/The Rear Of The Vehicle
  • No Need To Disassemble Your Struts To Install
  • Incl. Application Valved N3 Series Shock Absorbers
  • Offer The Best In Balanced Performance For On And Off-road Use
  • Body Lift Raises 1.25 in. As Opposed To The Standard 1 in.
SKU:
DHTP-254.20
UPC:
00843030128340
Minimum Purchase:
1 unit
Tire & Wheel Size Combinations:
295/55 R20 - 20x9, Offset: 0 to +18mm
Series:
Suspension Lift Kits
Subcategory:
Lift Kits
California Proposition 65:
No
Title:
4.75 Inch Lift Kit - Combo - Chevy GMC 1500 (07-13)
Category:
Suspension
Rear Components:
1.5 in lift blocks, U-bolts, Hardware
Tire, Wheel, And Offset Info:
305/70R17:Factory 17:6x5.5:-:-; 305/65R18:Factory 18:6x5.5:-:-; 305/55R20:Factory 20:6x5.5:-:-; 295/70R17:17x8.5:6x5.5:+0:-; 285/70R17:17x8.5:6x5.5:+0:-; 295/70R17:17x8.5:6x5.5:+1:-; 295/70R17:17x9:6x5.5:+0:-; 285/70R17:17x9:6x5.5:+0:-; 295/70R17:17x
Install Time:
6 - 8 hours
Front Components:
Upper strut spacers, Upper control arms, Upper ball joints, Hardware
Lift/drop Height:
4.75 in.
Rear Kit Components:
1.5in Lift Blocks, U-Bolts, Hardware
Front Kit Componenets:
Upper strut spacers, Upper control arms, Upper ball joints, Hardware
