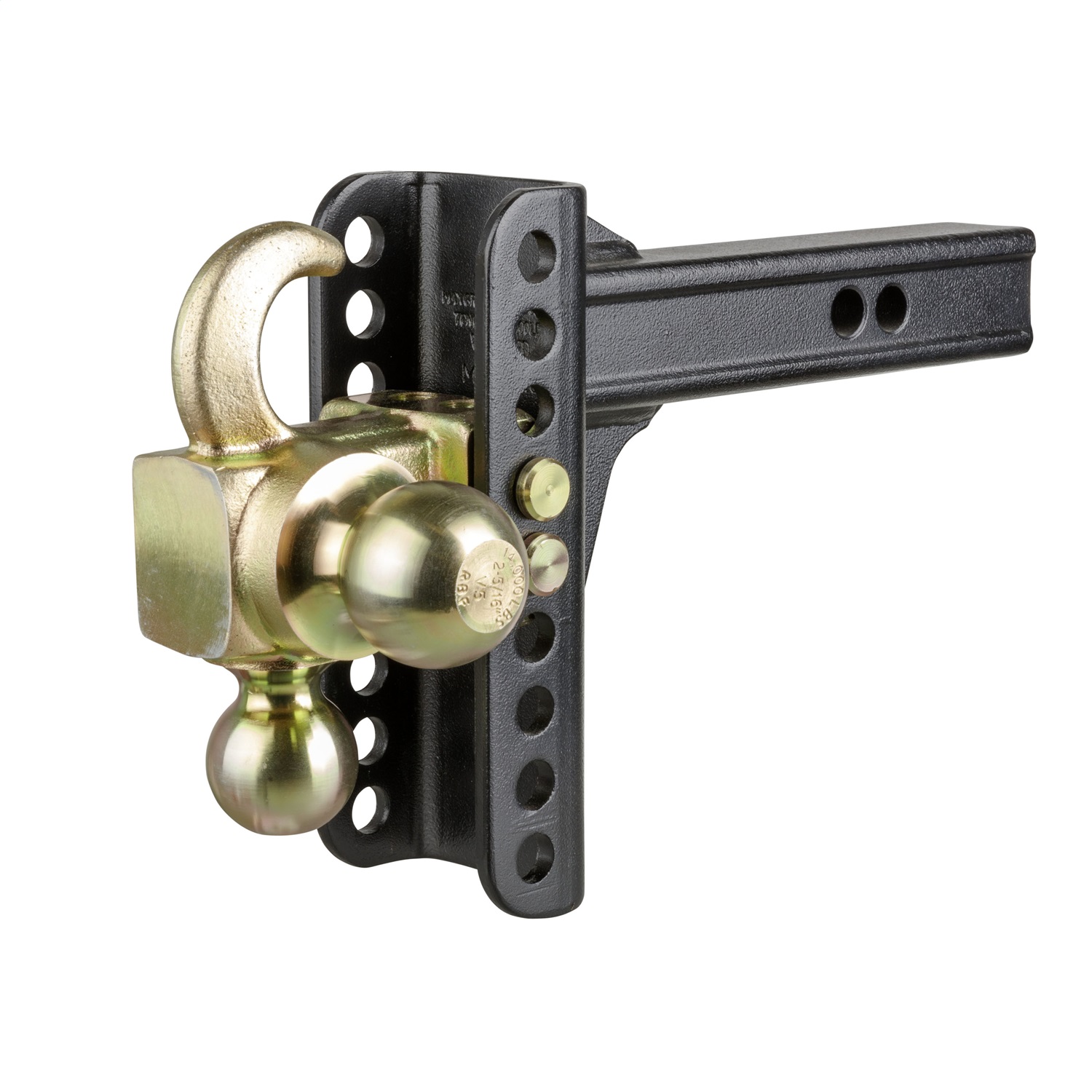

Adjustable Channel Mount with Hook & Step Dual-Ball - 2" Shank, 14K, 6" Drop 45904

(No reviews yet) Write a Review
Adjustable Channel Mount with Hook & Step Dual-Ball - 2" Shank, 14K, 6" Drop 45904

Adjustable Channel Mount with Hook & Step Dual-Ball - 2" Shank, 14K, 6" Drop 45904

$329.95

Why Buy Leonard?

If you own multiple trailers or frequently tow a variety of loads, you know how much time and money are spent tailoring your towing system to each and every individual trailer. There is nothing more inconvenient than switching back and forth between a few different ball mounts and trying to remember which mount fits with which trailer. A CURT adjustable ball mount is your multipurpose towing solution. This CURT adjustable channel-style ball mount has a shank size of 2" x 2" and features a multipurpose head with two different trailer ball sizes to accommodate two different coupler sizes: 2" and 2-5/16". It also features a hitch step for easier truck bed access, as well as a tow hook for straight-line pull applications (max tow hook capacity is 10,000 lbs.; DO NOT EXCEED TRAILER HITCH CAPACITY). The head attaches to an adjustable shank assembly with multiple mounting holes for varying ball heights. Each trailer ball can be raised to a maximum of 5-1/4" rise or lowered to a maximum of 6" drop, allowing you to make your trailer completely level in any towing situation. The channel-style design and dual-pin mounting system also provide a built-in anti-rattle feature to eliminate obnoxious chucking noises. This CURT adjustable ball mount offers a gross trailer weight capacity of up to 10,000 lbs. for the 2" ball and 14,000 lbs. for the 2-5/16" ball. It allows you to tow a variety of heavyweight trailers, and it features two pin holes in the shank to be mounted at an 11" or 12" length. All CURT channel-style adjustable ball mounts are made with sturdy steel construction and come with our black carbide powder coat finish for long-lasting rust, scratch and UV resistance. This product is protected under U.S. Patent Numbers: 11,628,698  and 11,660,916.

  • Adjustable Channel Mount with Hook & Step Dual-Ball - 2" Shank, 14K, 6" Drop
  • Max tow hook capacity is 10,000 lbs. (DO NOT EXCEED TRAILER HITCH CAPACITY)
  • Tow hook perfect for vehicle recovery and straight-line pull applications
  • Non-skid stepping surface for easier truck bed access
  • Two hitch pin holes provide shank lengths of 11" or 12"
  • Built-in anti-rattle helps promote quiet towing
  • Protected by a highly durable carbide powder coat finish
  • Dual-ball attachment features zinc-plated finish
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Mounts on trailer hitches with a 2" x 2" receiver tube opening
  • Adjustable channel mount allows for precise trailer leveling
  • Shank can be flipped for a max rise of 5-1/4" and drop of 6"
  • 2" ball rated for 10,000 lbs. and 2-5/16" ball rated for 14,000 lbs.
SKU:
BKDK-45904
Truckload Cases Qty - Xa:
0
Master Case Height Inches - Xa:
0.000
Master Case Width Inches - Xa:
0.000
Truckload Volume Cubic Feet - Xa:
0.00000
Drop:
6.000 in.
Sales Group Description - Xa:
BALL MOUNT
Material - Xa:
FORGED STEEL
Mount Type Description - Xa:
Not Applicable
Container Cases Qty - Xa:
0
Master Case Inner Pack Qty - Xa:
0
Item Length - Xa:
0.000
Product Weight - Xa:
0.000
Master Case Weight Lbs - Xa:
1.000
Receiver Tube Size:
2 IN
Master Case Qty - Xa:
45
Rise:
5.250 in.
Series:
Ball Mounts
Finish - Xa:
Blank
Warranty:
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Container Unit Qty - Xa:
0
Master Case Itf14:
0
Truckload Pallets Qty - Xa:
0
Truckload Weight - Xa:
0
Pallet Total Weight Per - Xa:
0.000
Pallet Qty - Xa:
0.000
Retail Length - Xa:
12.000
Shank Diameter:
2 IN
Pallet Layer Of Cases - Xa:
5
Max Drop:
6 IN
Retail Height - Xa:
6.750
Rate Class - Xa:
60.0
Style:
Adjustable
Item Class - Xa:
OBS
Box Length In Inches - Xa:
0
Master Case Length Inches - Xa:
0.000
Master Case Volume Cubic Feet - Xa:
0.00000
Ball 1 Diameter And Capacity:
2 IN - 10,000 LB
Ball 2 Diameter And Capacity:
2-5/16 IN - 14,000 LB
Pallet Case Per - Xa:
45
Pallet Cases Per - Xa:
45
Pallet Cases Per Layer - Xa:
9
Gtw/tw Ball 1:
10,000 LBS
Retail Width - Xa:
10.000
Rate Class - Xa:
70.0
Pallet Case Per Layer - Xa:
9
Subcategory:
Ball Mounts
Category:
Towing and Accessories
Parcel Allowed - Xa:
Yes
Box Width In Inches - Xa:
0
Container Weight Lbs - Xa:
0
Master Case Itf14 - Xa:
0
Truckload Units Qty - Xa:
0
Pallet Total Height Inches - Xa:
0.000
Container Volume Cubic Meter - Xa:
0.00000
Overall Length:
12.000 in.
Container Pallet Qty - Xa:
0
Item Height - Xa:
0.000
Ball Diameter:
2 IN
Shipping Weight - Xa:
36.500
Sales Family Description - Xa:
ACCESSORIES
Box Height In Inches - Xa:
0
Container Weight Kg - Xa:
0
Item Width - Xa:
0.000
Container Volume Cubic Feet - Xa:
0.00000
Gtw/tw Ball 2:
14,000 LBS
Max Rise:
5-1/4 IN
Sales Family Code - Xa:
ACCES
Tariff 301 - Xa:
No
Side Application Type Description - Xa:
Not Applicable
California Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
allowed_types:
accessories
