Designed for Ranchers. Built to Move.

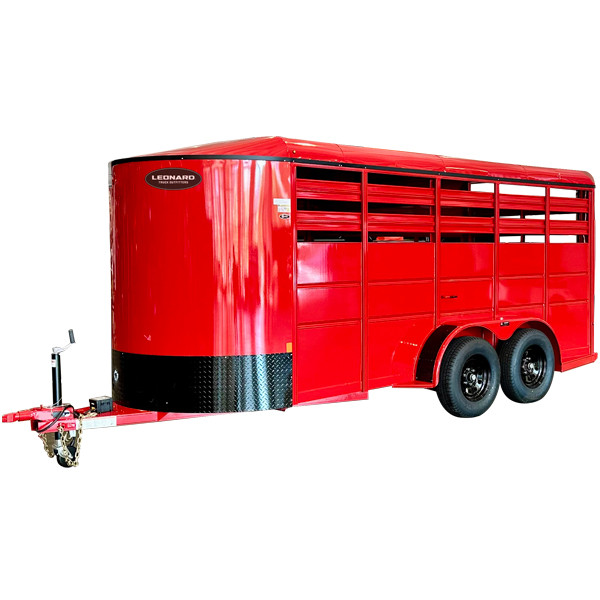

The 6x16 Livestock Trailer is engineered for dependable livestock transportation—whether you're hauling cattle, sheep, goats, or other farm animals. With a 7,000 lb GVWR, center cut gate, and a rear full swing gate with half-slider, this trailer gives you the flexibility and durability needed for day-to-day farm use and market runs.

The spring-loaded slam latch center gate keeps your load securely divided, while the escape door ensures safety and convenience when managing livestock. A pressure-treated pine floor, steel teardrop fenders, and a deluxe aluminum gravel guard make this trailer rugged enough for any terrain.

Key Features:

Livestock-Ready Design

• Deck Size: 6 ft x 16 ft

• GVWR: 7,000 lbs

• Center Gate: Spring-loaded slam latch center divider

• Escape Door: Standard side escape door for easy access and animal safety

• Rear Door: Full swing gate with integrated half-slider

• Rear Opening: Pin/spool latch system with tail light gussets

Frame & Build

• Frame: 2" x 3" Angle Steel

• Tongue: 3" Channel

• Crossmembers: 2" x 2" Angle on 16” centers

• Flooring: 2" Pressure Treated Pine

• Sides: 48" high embossed 16-gauge steel panels

• Side Uprights: 1" x 2" tubing on approx. 38” centers

• Roof: 18-gauge metal with bows on 24” centers

• Roof Radius: 6" rounded top for weather runoff

• Nose Cap: Aerodynamic front design

Axles, Suspension & Towing

• Axles: Tandem 3,500 lb Dexter EZ Lube Axles

• Suspension: Eye-to-eye leaf spring system

• Brakes: Electric brakes on one axle (check local regulations)

• Coupler: 2” standard coupler (2-5/16” on 18'+ models)

• Jack: Top-wind tongue jack with wheel

• Safety Chains: 3/8" HD with safety latch hooks

• Emergency Breakaway Kit: With battery backup for safety

Tires & Wheels

• Tires: 15” radial tires

• Wheels: 15”, 6-bolt wheels

• Spare Tire Mount: Included

Lighting & Wiring

• Exterior Lights: DOT-approved stop, tail, turn, and clearance

• Wiring: 14-gauge in protective conduit with junction box

• Electric Plug: 7-Way RV style connector

• Reflective Tape: Full DOT-compliant reflective tape

Finish & Protection

• Gravel Guard: Deluxe aluminum diamond plate

• Fenders: Steel teardrop

• Pre-Prep: 3-step acid wash with phosphorus solution

• Sealing: Fenders & roof joints fully sealed

• Primer: Rust-resistant epoxy primer

• Paint: Baked-on high-solid urethane finish

• Pinstripes: Painted pinstripe detailing

From loading in the pasture to pulling into auction, this 6x16 livestock trailer delivers the strength, ventilation, and versatility needed to transport your animals confidently and safely.
Trusted by ranchers. Built to last. Ready for the long haul.
