Spacious and Strong in a Compact Package.

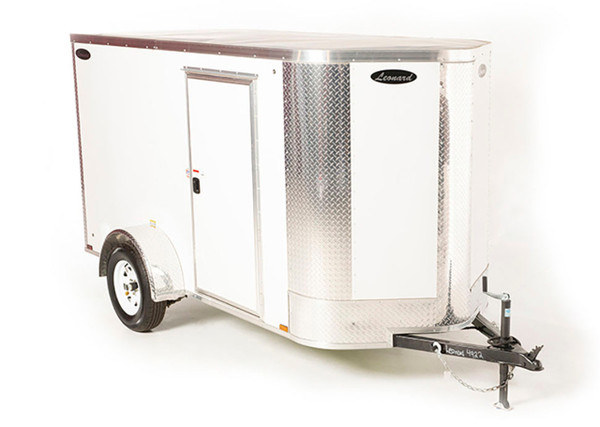

The 5x10 Single Axle Enclosed Trailer is built for durability, security, and versatility in a size that’s easy to tow behind most vehicles. Whether you're transporting tools, equipment, or weekend gear, this trailer offers peace of mind with its all-tubular frame, semi-screwless .024 aluminum siding, and diamond plate protection.

Available in a V-nose or flat front profile, this trailer comes standard with a 5’6” interior height, RV flush lock side door, and your choice of barn doors or ramp door at the rear. Its 3/4” plywood floor and 3/8” plywood walls are built tough for long-lasting performance on and off the job.

Key Features:

Structure & Dimensions

• Size: 5 ft wide x 10 ft long

• Axle: 2,990 lb 4” Drop Leaf Spring Idler Axle (Single Axle Unit)

• Frame: 3" All-Tubular Main Frame

• Floor Crossmembers: 1” x 2” tubular steel

• Wall & Roof Members: 1” x 1.5” tubular steel

• Interior Height: 5’6”

• Studs: 16” on-center tubular wall & floor studs

• Roof Bows: 24” on-center tubular

Access & Doors

• Side Door: RV Flush Lock

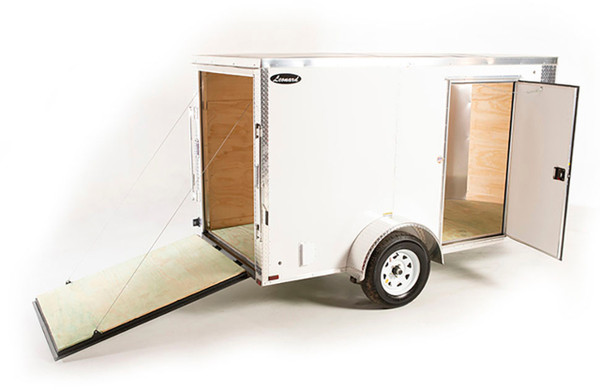

• Rear Door: Ramp Door

Interior Finish

• Flooring: 3/4” Plywood

• Walls: 3/8” Plywood or Lauan Interior Trim Option

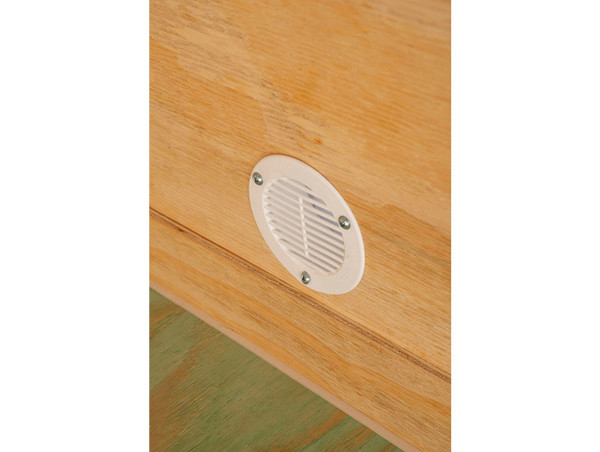

• Ventilation: Plastic Side Wall Vents

Exterior & Safety

• Siding: .024 Semi-Screwless Aluminum (Colors: Pewter, Charcoal, Red, Black, White, Silver)

• Roof: Galvanized Steel

• Stone Guard: 24” Diamond Plate Front Stone Guard

• Fenders: Diamond Plate (Smooth finish if ATP unavailable)

• Lights: DOT-Approved Stop, Tail, Turn, and Clearance Lights

• Reflective Tape: Full DOT-Compliant Reflective Striping

• Electric Plug: 4-Way Flat or Optional 7-Way Plug

The 5x10 enclosed cargo trailer is the ideal balance of capacity and maneuverability—compact enough for residential use, yet durable enough for commercial jobs.
Efficient, secure, and built to perform.
