12,000lb Winch 12 VDC, 3/8 in x 80 ft. synthetic rope, ergo handheld remote ctrl 1712201
click to zoom in

12,000lb Winch 12 VDC, 3/8 in x 80 ft. synthetic rope, ergo handheld remote ctrl 1712201

(No reviews yet) Write a Review
12,000lb Winch 12 VDC, 3/8 in x 80 ft. synthetic rope, ergo handheld remote ctrl 1712201

12,000lb Winch 12 VDC, 3/8 in x 80 ft. synthetic rope, ergo handheld remote ctrl 1712201

$997.99

video gallery

Why Buy Leonard?

Description

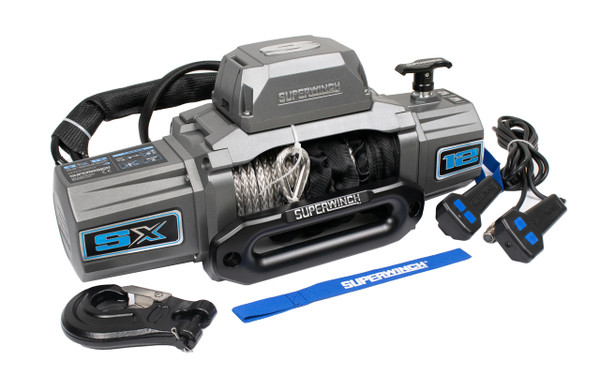

The SX 12000SR is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8 in. diameter synthetic rope, a 12' lighted wired remote, and wireless handheld remote. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 12,000 lbs. of raw pulling power, the new SX 12000SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all.

  • Rated Line Pull Of 12000 Lbs
  • 100% Full Load Holding Automatic Mechanical Brake
  • IP68-Rated Waterproof And Dustproof Winch
  • Durable Metallic Graphite Powder Coat Finish
  • 6.0 Hp Sealed Motor
  • Incl. Wireless Handheld Remote And 12 Ft Handheld Wired Remote
  • Pull-And Turn Clutch Handle
  • 3-Stage Planetary Gearing With 231:1 Ratio
  • Patented Drum Light
  • Synthetic Rope Measures 3/8 in. X 80 Ft
  • Heavy Duty Clevis Winch Hook
  • Aluminum Hawse Fairlead
Specifications
SKU:
BGFJ-1712201
Minimum Purchase:
1 unit
Rated Single Line Pull (lbs):
12000
Line Diameter:
3
Warranty:
Limited Lifetime Mechanical/7 Year Limited Electrical
Mounting Hardware Included:
Yes
Line Included:
Yes
En Compliant:
No
Dimensions:
22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
Marketing Status:
Current
Fairlead Type:
Hawse
Subcategory:
Truck and SUV Winches
California Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Category:
Winches and Accessories
Rated Single Line Pull (lbs.):
12000
Line Speed:
68 Amps Motor Draw/23.4 FPM (7.13 MPM)
Line Length:
80
Rope Material:
Synthetic
Brake:
Yes
Remote Included:
Yes
Voltage:
12V DC
Winch Type:
Electric
Finish/color:
Graphite
Series:
SX Series Winches
Can Ship By Ground Delivery:
Yes
Mounting Bolt Pattern:
10in x 4.5in (254mm x 114.3mm)
Volts:
12
Line Type:
Synthetic Rope
Free Spooling:
Yes
Voltage:
12 DC
Rating:
12000
Gear Reduction Ratio:
218:1
Hook:
Heavy-Duty, Clevis Pinned Latched
Remote Type:
Wired
Mounting Pattern Length:
10
Drive Gear:
3-Stage Planetary
Mounting Pattern Width:
4
Mounting Hole Quantity:
4 Holes
Freight Class:
65
Superwinch Web Title:
SX12SR Winch 12V 12000 lbs with Synthetic Rope & Wired Remote
allowed_types:
accessories
Features
!
